2000 Counts Data Hold Electrical Multi Tester , Manual Commercial Electric Multimeter

Name: 2000 Counts Data Hold Electrical Multi Tester Manual Commercial Electric Multimeter
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM830L

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 138x69x31mm Product Weight Approx. 170g

Display : 2000 Counts

Current Measurement : 10A DC

Function 1 : Diode Test

Voltage Measurement : 600V AC/DC

Function 2 : Data Hold

Product Name : Handheld Digital Multimeter

Contact Now

2000 Counts Data Hold Manual Range , Hand - Held Digital Meter With Mini Size

Features of Hand-Held Digital Multimeter

Back Light
Hold button
Fuse protection: F 250mA/ 25V
Display: LCD, 1999 counts, updates 2-3/sec
Overrange Indication: Only figure “1” on the display

Specifications	Range	Accuracy
DC Voltage	200mV/2V/20V/200V	±(0.5%+2)
	600V	±(0.8%+2)
AC Voltage	200V/600V	±(1.2%+10)
DC Current	20µA	±(1.2%+10)
	200µA/2mA	±(1.0%+3)
	20mA	±(1.0%+5)
	200mA	±(1.5%+5)
	10A	±(3.0%+10)
Resistance	200Ω/2kΩ/20kΩ/200kΩ	±(0.8%+2)
	2MΩ	±(1.0%+5)
Features
Display:2000 counts
Data Hold
Diode Test
hEF Test
Continuity
General
Power Supply	DC9V 6F22 battery
Net weight	197g (battery is not included)
Gross weight	339g
Size	145mm74mm44mm
Safety Rating	EN61010-1, EN61010-1-033, EN61326, CAT. Ⅲ 600V

Description of Hand-Held Digital Multimeter

The meter is a handheld 31/2 digital multimeter for measuring DC and AC voltage, DC current, Resistance, Diode, Transistor and Continuity Test with battery operated.

This meter can measure 600v DC&AC voltage, 10A AC current, 2MΩ resistance, and diode test, transistor test, continuity test.

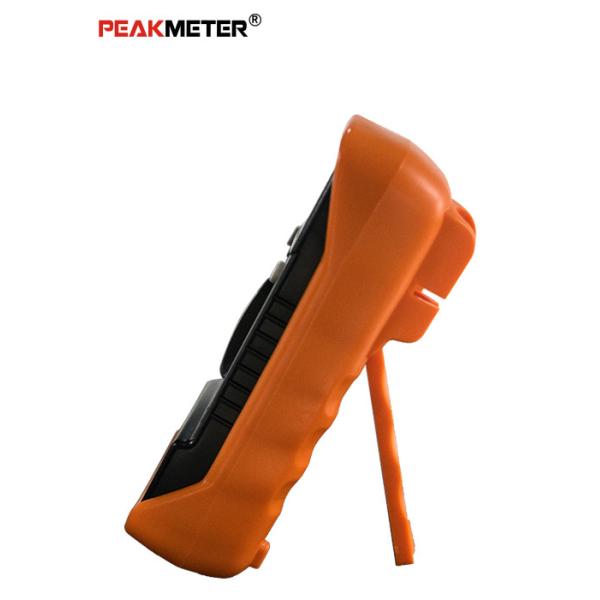

Removable soft rubber protective case to protect the body from collision. The rear shell is designed with a support frame, which is convenient for users to operate and read.

2000 Counts Data Hold Electrical Multi Tester , Manual Commercial Electric Multimeter
