Ultrathin Mini Handheld Digital Multimeter NCV Tester And Auto Range Stable Performance

Name: Ultrathin Mini Handheld Digital Multimeter NCV Tester And Auto Range Stable Performance
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM8213C

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 120mmx70.8x12.5mm Product Weight Approx. 86g

Display : 4000 Counts

Function 1 : NCV test

Capacitance : 100uF

Function 2 : Auto Power Off

Frequency : 100kHZ

Product Name : Handheld Digital Multimeter

Contact Now

Ultrathin And Mini Digital Multimeter With NCV Tester And Auto Range

Feature of Mini Digital Multimeter

Measuring AC & DC voltage, AC & DC current, resistance, capacitance
Automatic shutdown: About 30 minutes
Over range indication: Display “OL”
Battery low voltage indication
Diode, continuity and NCV test
4000 counts display

Specifications	Range	Accuracy
DC Voltage	4V/40V/400V/600V	±(1.0%+3)
AC Voltage	4V/40V/400V/600V	±(2.0%+5)
DC Current	40mA/400mA	±(2.0%+5)
AC Current	40mA/400mA	±(2.0%+5)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(2.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz	±(2.0%+5)
Capacitance	50nF/500nF/5uF/50uF/100uF	±(5.0%+5)
Duty ratio	5.0~95%	±(3.0%+5)
Features
Display	4000 counts
Frequency	100kHz
Resistance	2000kΩ
Capacitance	100uF
Continuity	√
Diode Test	√
Low Battery Indication	√
NCV	√
Auto Power Off	√
General
Power Supply	1*3.0V CR2032 Button Battery
Net weight	97g (battery is not included)
Gross weight	147g
Size	127mm74mm13mm
Safety Rating	EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

Description of Mini Digital Multimeter

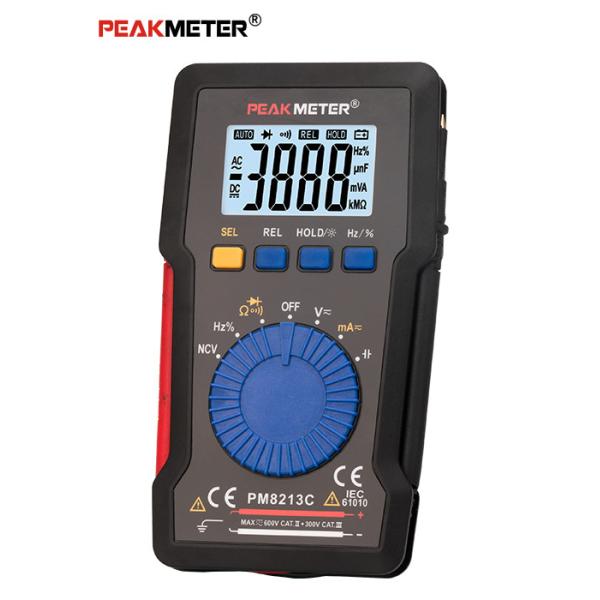

PM8213C is a small portable digital multimeter. It has a small overall body and a variety of functions. It can measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, diode and NCV. This meter consumes less power and is powered by a 3V button battery. Such a cost-effective instrument is an ideal measuring instrument for students, professionals and hobbyists.

This instrument is designed and produced strictly according to safety standard IEC61010, and complies with dual insulation, over-voltage standard 300V CAT Ⅲ, 600V CAT Ⅱ and safety standard of pollution level 2.
It can measure AC & DC voltage, Frequency, AC & DC current, Capacitance and Resistance.

Service

All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
Customer can refer the maintenance order to get more information.
